In stock
SKU: PGEL-RAPTMB-20

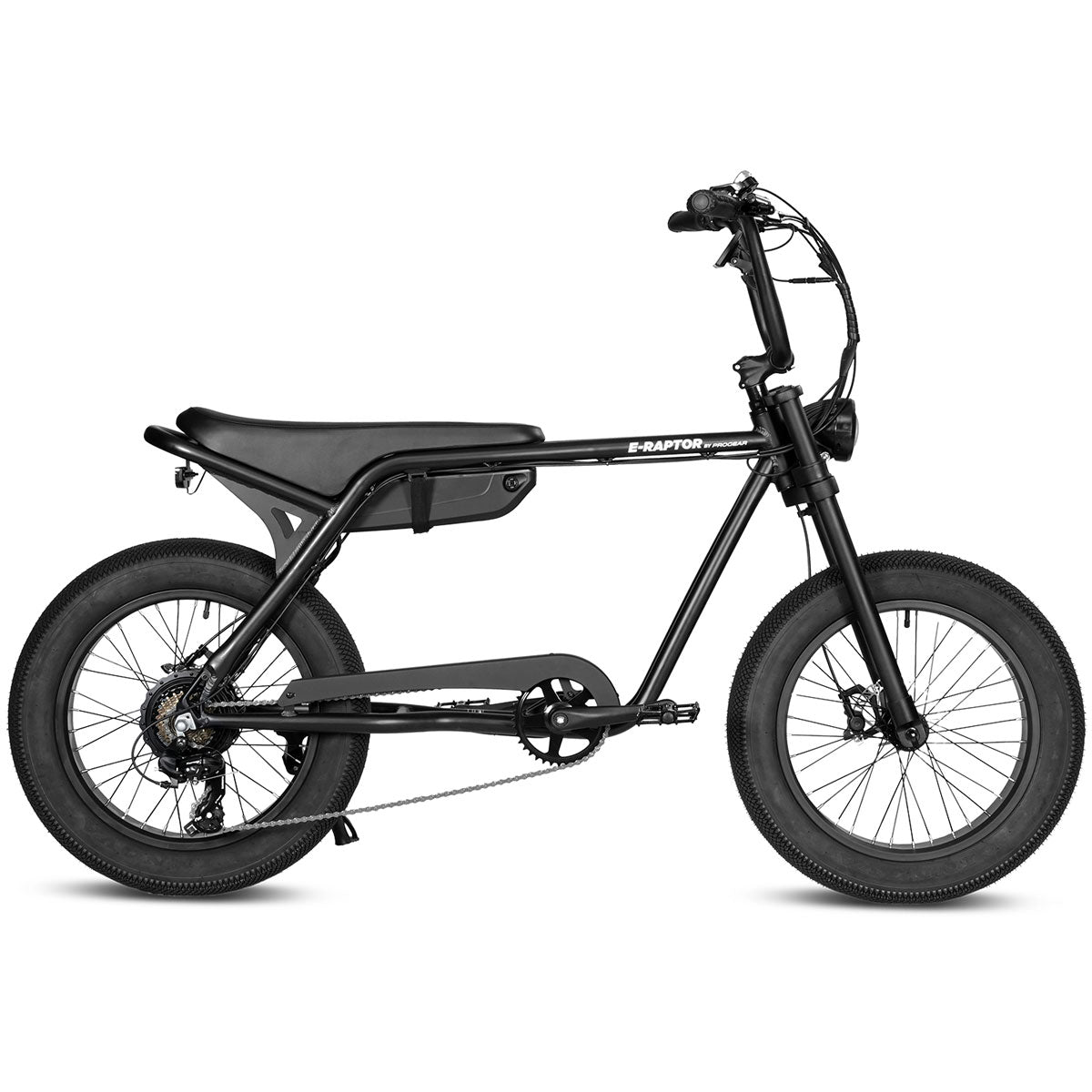

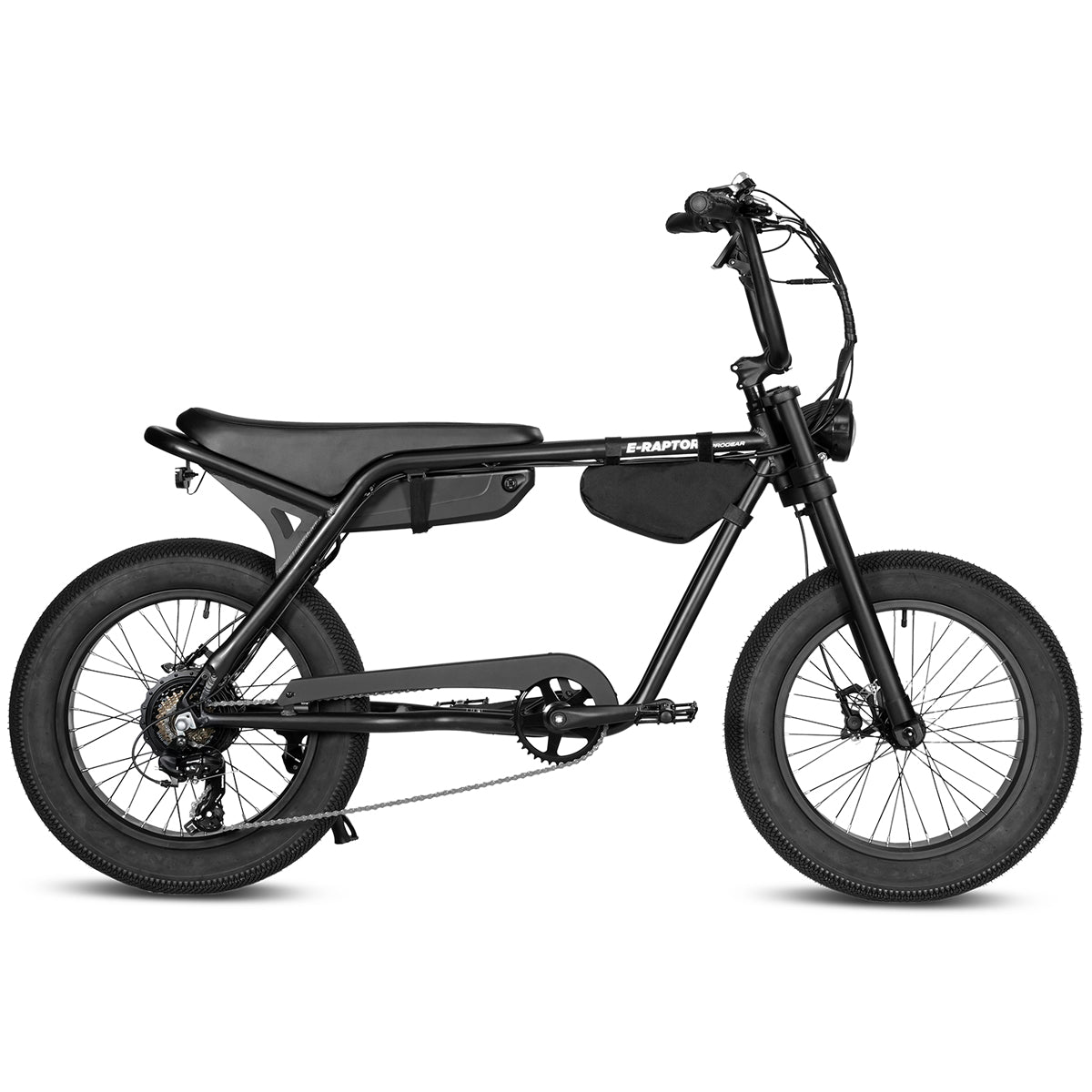

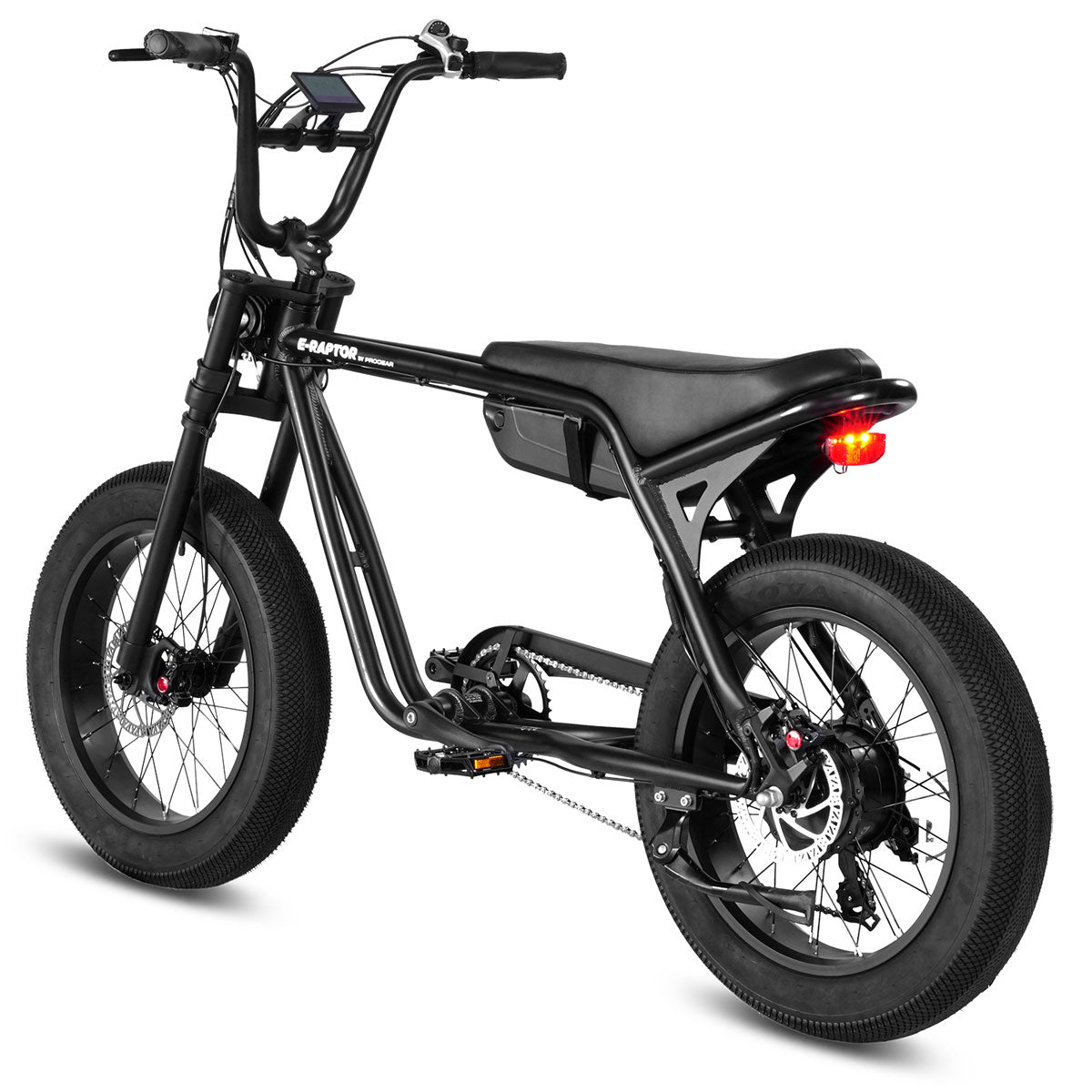

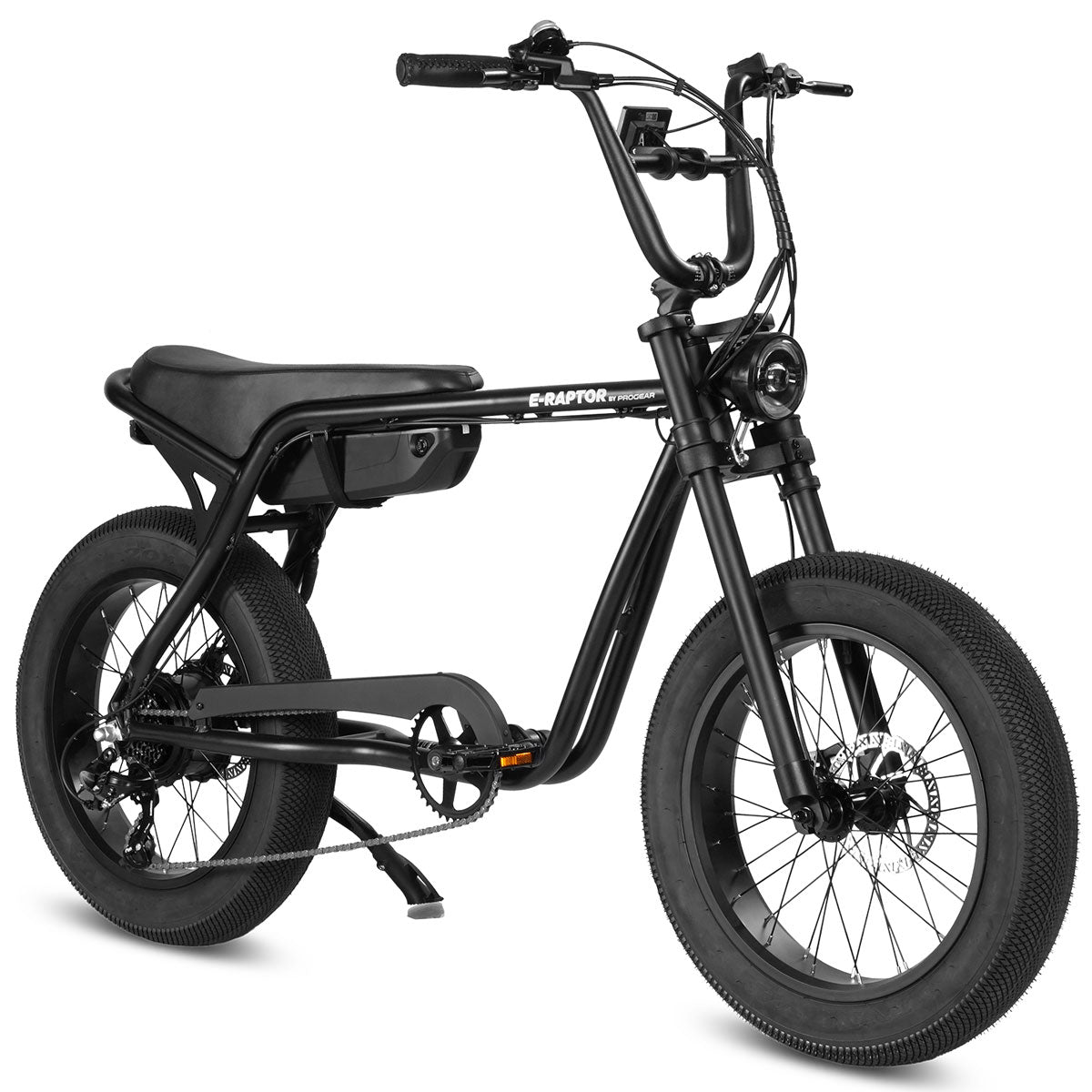

E-Raptor 20" Electric Street Bike - Matte Black
E-Raptor 20" Electric Street Bike - Matte Black
Regular price
$1,619.00
Sale price
$1,619.00
Regular price
$2,798.00
Unit price
per
REVIEWS
QTY
Couldn't load pickup availability
Still unsure on what bike frame to get? Check out our recommended size guide or contact us via live chat or 1300 310 493 number to talk to our friendly staff for the best option.
CHECK YOUR DELIVERY
GO
WANT TO PICKUP?
Click here to check availability
*Images provided are for reference only. Actual product may vary.
Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.
This product requires assembly
We provide easy step by step instructions & supporting video tutorials to help you with assembly & adjustments. If you are unfamiliar with assembling or adjusting Bicycles or Tricycles, or find it difficult to assemble or adjust with the instructions supplied, we strongly recommend that this product is built by an experienced bike mechanic. Any damage resulting from improper assembly will not be covered by warranty. See Assembly details
Pick Up Availability
Click & Collect
Please see below for all Click & Collect locations. Place an order online, get notified and pick up the order at your convenience.
| Broadmeadows, VIC | Parkinson, QLD *Pre-Booked Pick Ups Only |
Click here for more details on Click & Collect and Pick Up
Bike Size Guide
YOU MIGHT WANT TO ADD
How Progear Works
Order Online
Click & Collect
Easy Assemble
Video instructions included
Done!
Ride your new bike!
20" ALLOY
FRAME
500W EVERDRIVE
MOTOR
7-SPEED
DRIVETRAIN
48V 615WH
EVERDRIVE BATTERY
Throttle Add On
The E-Raptor comes with the option to add a throttle, allowing you to activate the motor without having to pedal.
Fat Tyres for Maximum Comfort
4" wide Fat tyres work to absorb bumps and uneven surfaces so that you can enjoy a comfortable ride no matter where you go.

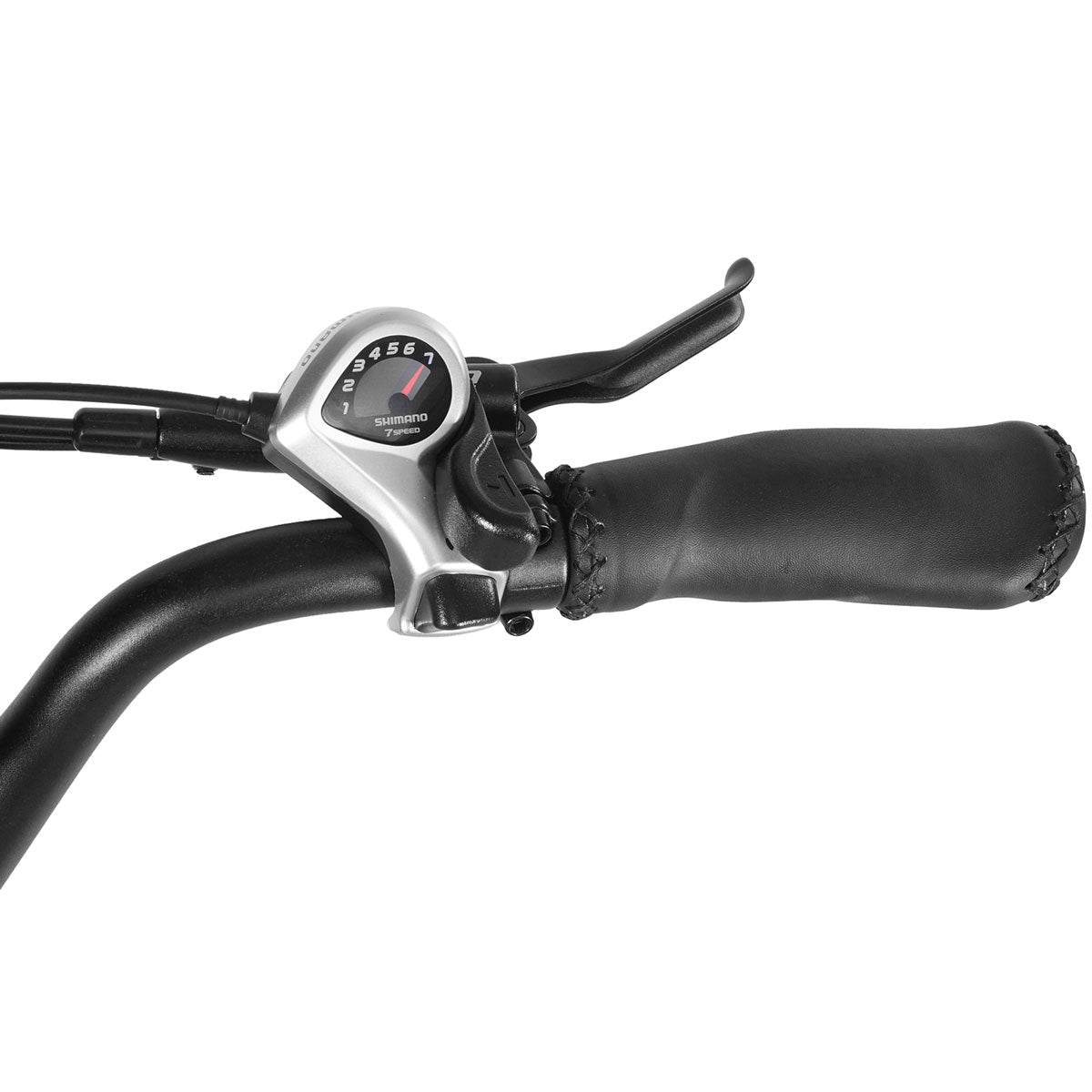

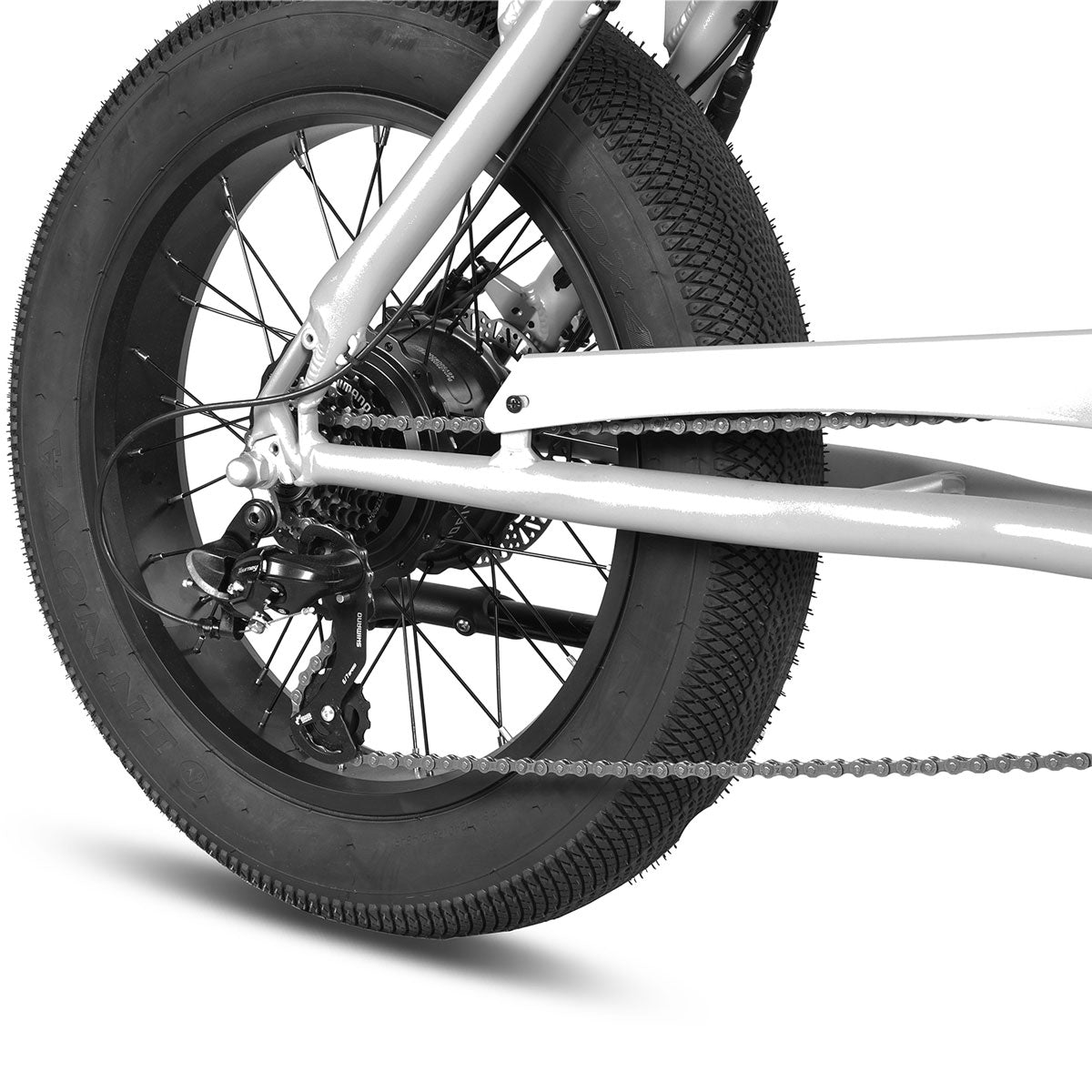

7 Speed Tourney Drivetrain
The smooth Shimano drivetrain creates effortless shifting between 7 gears, helping you find the perfect balance for any terrain.
EverDrive 48V Integrated Battery
Our most powerful battery yet, the EverDrive 48v 615wh integrated cell keeps you going for longer. With a bigger battery, you can go farther and won't need to recharge as often.
Safety tested to strict international standards.
Strong Stopping Power
Take back control with the E-Raptor's hydraulic disc brakes. These types of brakes are preferred for their consistent, reliable performance.
500W EverDrive® Motor
An impressive 500W motor powers your ride, helping you take on steep inclines and carry a greater weight capacity.

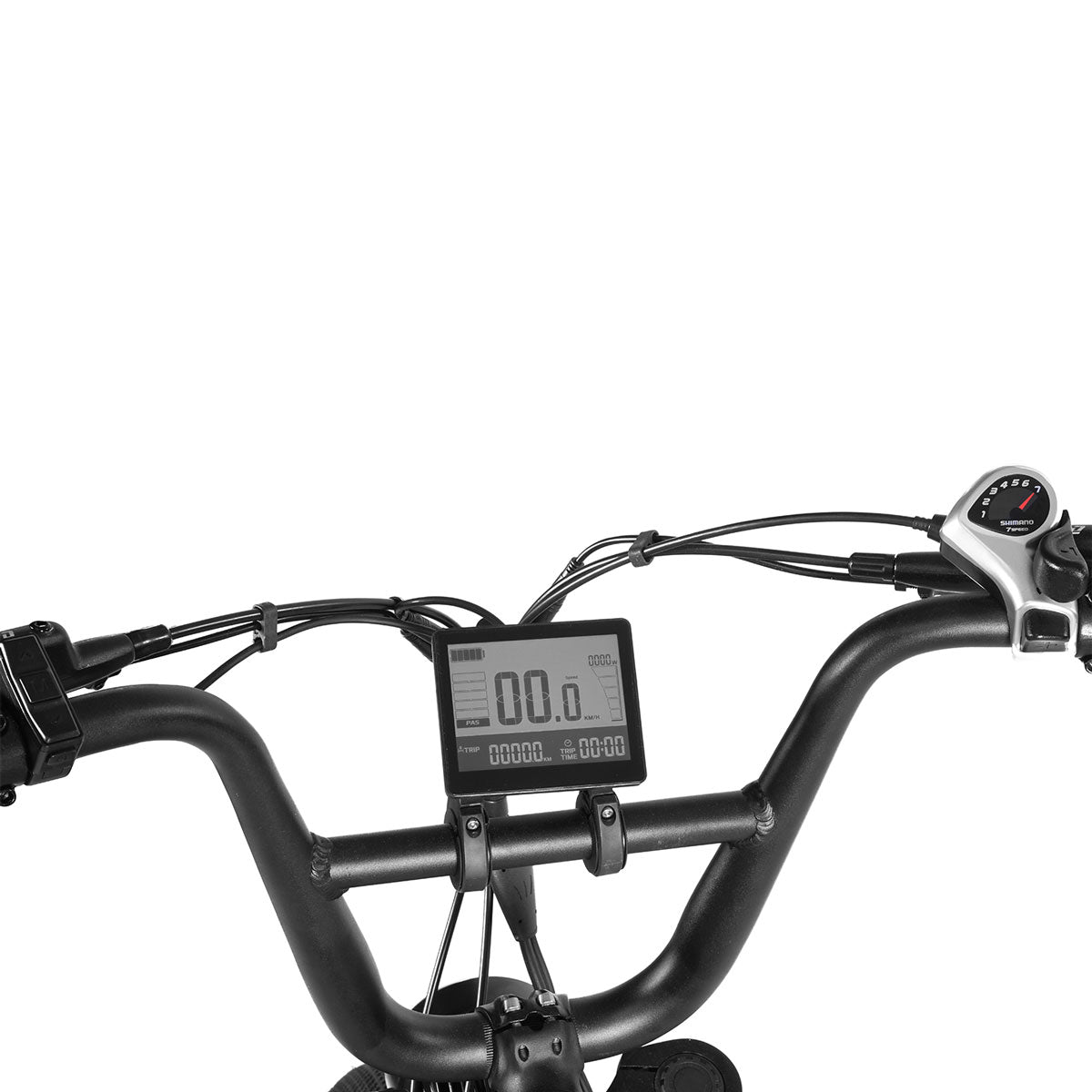

Be in Control
With a large backlit EverDrive® LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist and battery charge.
The Blueprints
An awesome package with the following components:
- A. Alloy 20" Frame
- B. Progear Alloy Width 680mm
- C. Hydraulic Disc Brake - 160mm Rotor
- D. 7-Speed Tourney Drivetrain
- E. EverDrive 48V Integrated Battery
- F. 4" Wide Fat Tyres
- G. 500W EverDrive® Motor
Where to ride?
Specification
Technical Specifications
| Frame | Alloy 20" |
|---|---|
| Fork | Steel 20" |
| Handlebar | Progear Alloy Width 680mm |
| Grips | 135mm |
| Stem | Progear Alloy 50mm |
| Saddle | Integrated |
| Pedals | Progear Alloy |
| Shifter | Shimano TX50 7-Speed |
| Rear Derailleur | Shimano Tourney 7-Speed |
| Brakes | Hydraulic Disc Brake - 160mm Rotor |
|---|---|
| Freewheel | Shimano 7-Speed, 14-28T |
| Chainwheel & Cranks | 38T - 170mm Crank |
| Chain | KMC 7s 140L |
| Tyre | 20" x 4.0 |
| Rim | Single Wall 20" |
| Bell | Included |
| Bag | Included |
| Kickstand | Included |
Electrical Components
| Battery | EverDrive 48V 615Wh |
|---|---|
| Display | EverDrive LCD Speed Limit 25km |
| Charger | 48V 2A |
| Motor | EverDrive 48V 500W 60nm |
|---|---|
| F Light | Integrated |
| R Light | Integrated |
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors
that will affect how long the battery will last after a full charge.
- Factors include:
- Level of Pedal Assistance – Higher level of assistance will use more battery charge.
- Weight of Rider & Luggage – More weight may require more power from the battery.
- Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
- Tyre Conditions – Incorrect tyre pressure may create more rolling resistance.
- Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
Electric Bike Legality
This e-bike is limited to 25 km/h for legal use on public roads. A throttle kit is available for off-road use only, enabling throttle control and modifying or removing speed restrictions. Check local laws before use or modification.
Bike Size Guide
| Frame Size Number | One Size |
| Wheel Size | 20" |
| Suggested Height | 165-190cm |
| Minimum Suggested Inseam | 77cm |
| A - Seat Tube | - |
| B - Seat Tube Angle | - |
| C - Head Tube Length | 12.5cm |
| D - Effective Top Tube | 66cm |
| E - Chainstay Length | 60cm |
| F - Wheelbase | 117.6cm |
| G - Standover | 75.2cm |
*Images provided are for reference only. Actual product may vary.
Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.
Warranty
- Lifetime warranty on Frame and Fork
- 12 Months Manufacturer's Warranty on all non-consumable components
- 12 Months Manufacturer's Warranty on all electrical components, such as motors, display or batteries.
- Consumable parts (including grips, tubes, tyres, cables, brake pads, saddle coverings, chain, spokes, cassettes and chain rings) are not covered by the warranty.
For more information on our Warranty policy, click here
Delivery
Assembly
Product Manuals
