Still unsure on what bike frame to get? Check out our recommended size guide or contact us via live chat or 1300 310 493 number to talk to our friendly staff for the best option.
WANT TO PICK UP? Click here to check availability
We provide easy step by step instructions & supporting video tutorials to help you with assembly & adjustments. If you are unfamiliar with assembling or adjusting Bicycles or Tricycles, or find it difficult to assemble or adjust with the instructions supplied, we strongly recommend that this product is built by an experienced bike mechanic. Any damage resulting from improper assembly will not be covered by warranty. See Assembly details
CLICK & COLLECT
VIDEO INSTRUCTIONS INCLUDED
Ride your new bike!
Fitted with front and rear suspension, you can experience the highest comfort and control levels to tackle even the most rugged terrains. Absorb bumps from the front and rear wheels with ease while keeping you in close contact and control on the ground for the tricky terrains. When you're ready to hit the road, we've got you covered. Simply set the Hydraulic lockout system and get going for a smooth ride.
Designed to last, our engineers have built the E-Trail with an Alloy frame and other Alloy components. Alloy offers greater durability while remaining lightweight, increasing the agility and handling of your bike, making it essential for any mountain bike rider.

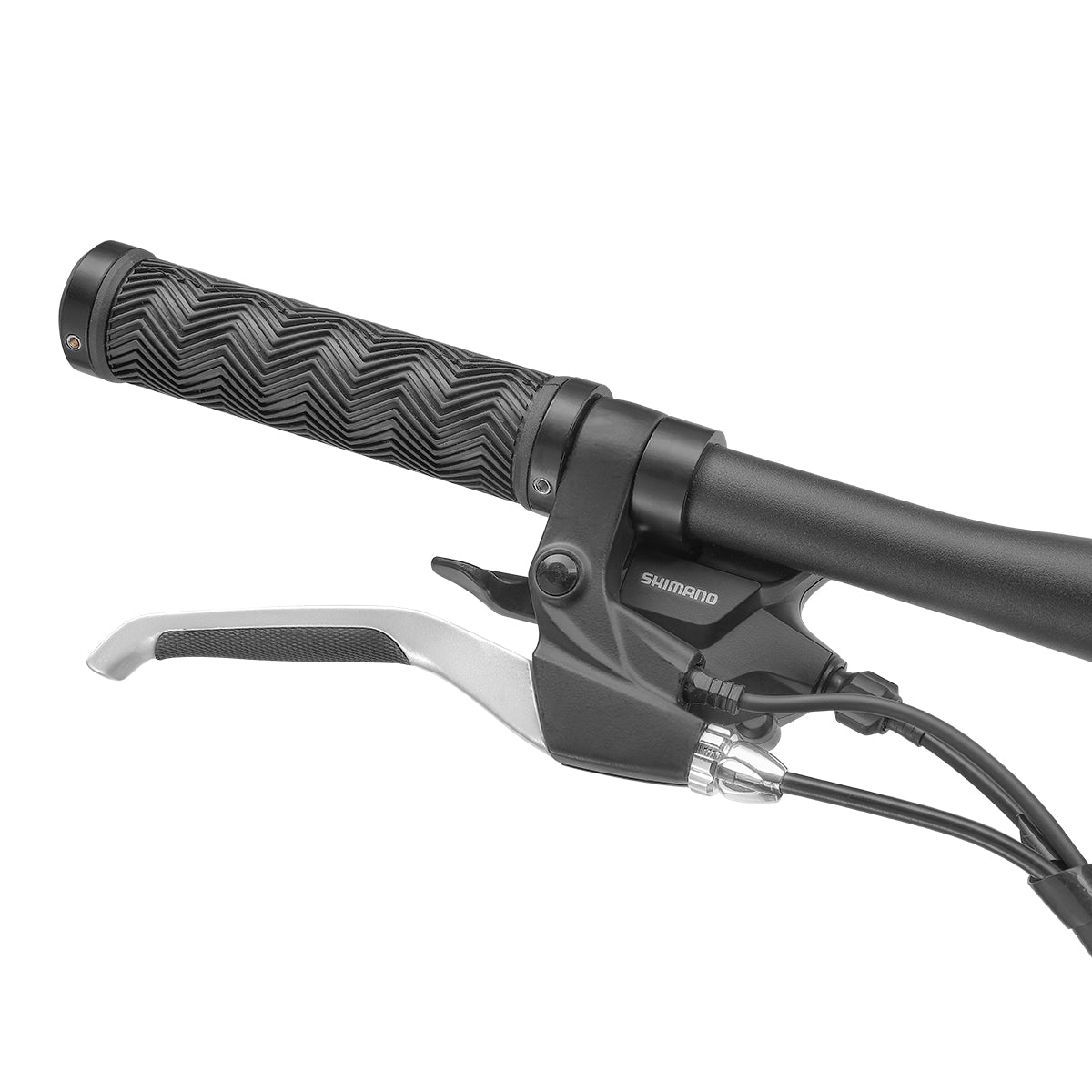

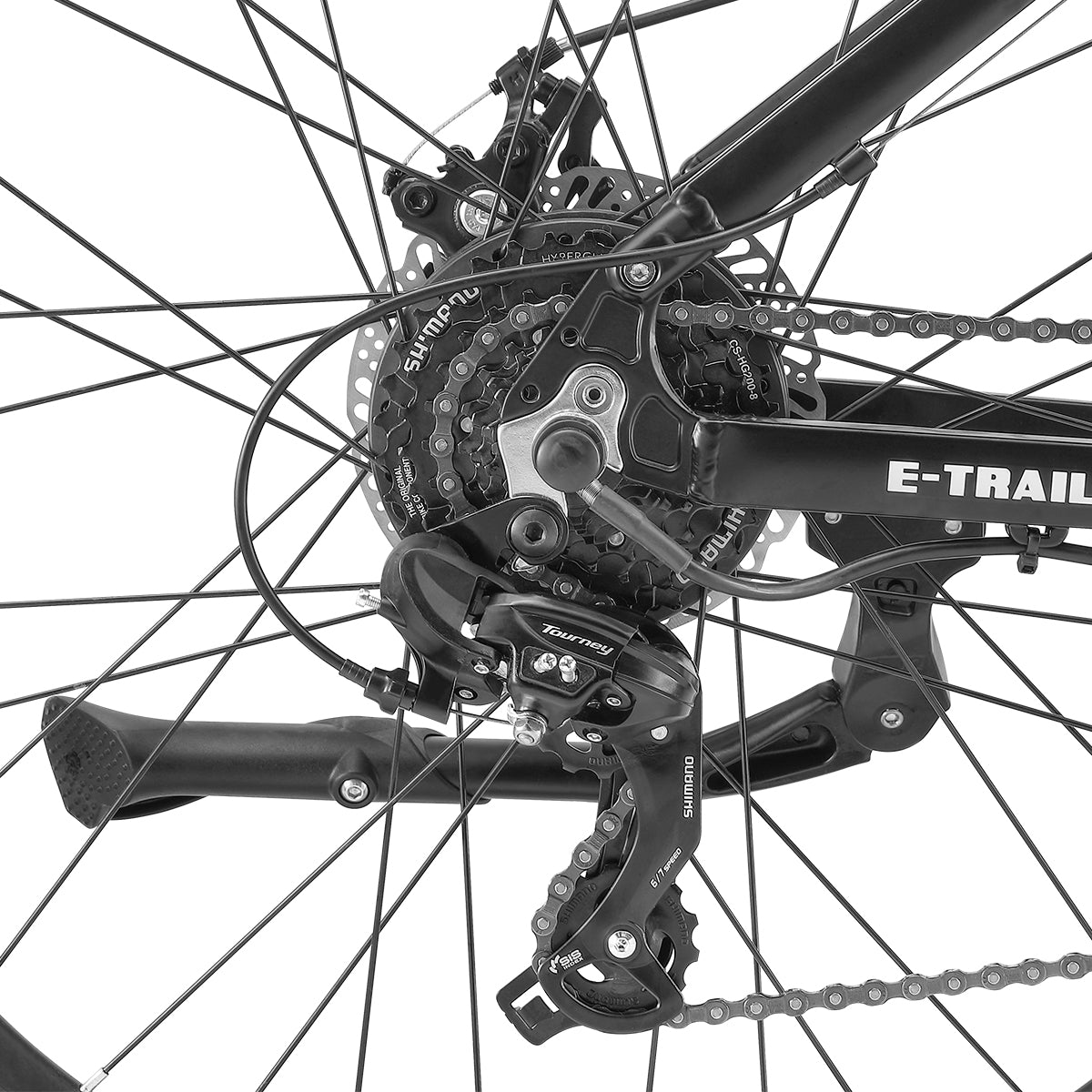

Using a quality Shimano drivetrain along with a Shimano RapidFire shifter provides smooth gear changing for 8 speeds. You'll be able to maintain cadence and the correct gear ratio for any terrain.
Strong and reliable stopping power is paramount to any bike rider, especially if you're manoeuvring through tough terrain. That's why our E-Trail comes with Disc brakes for consistent, high-powered braking performance.

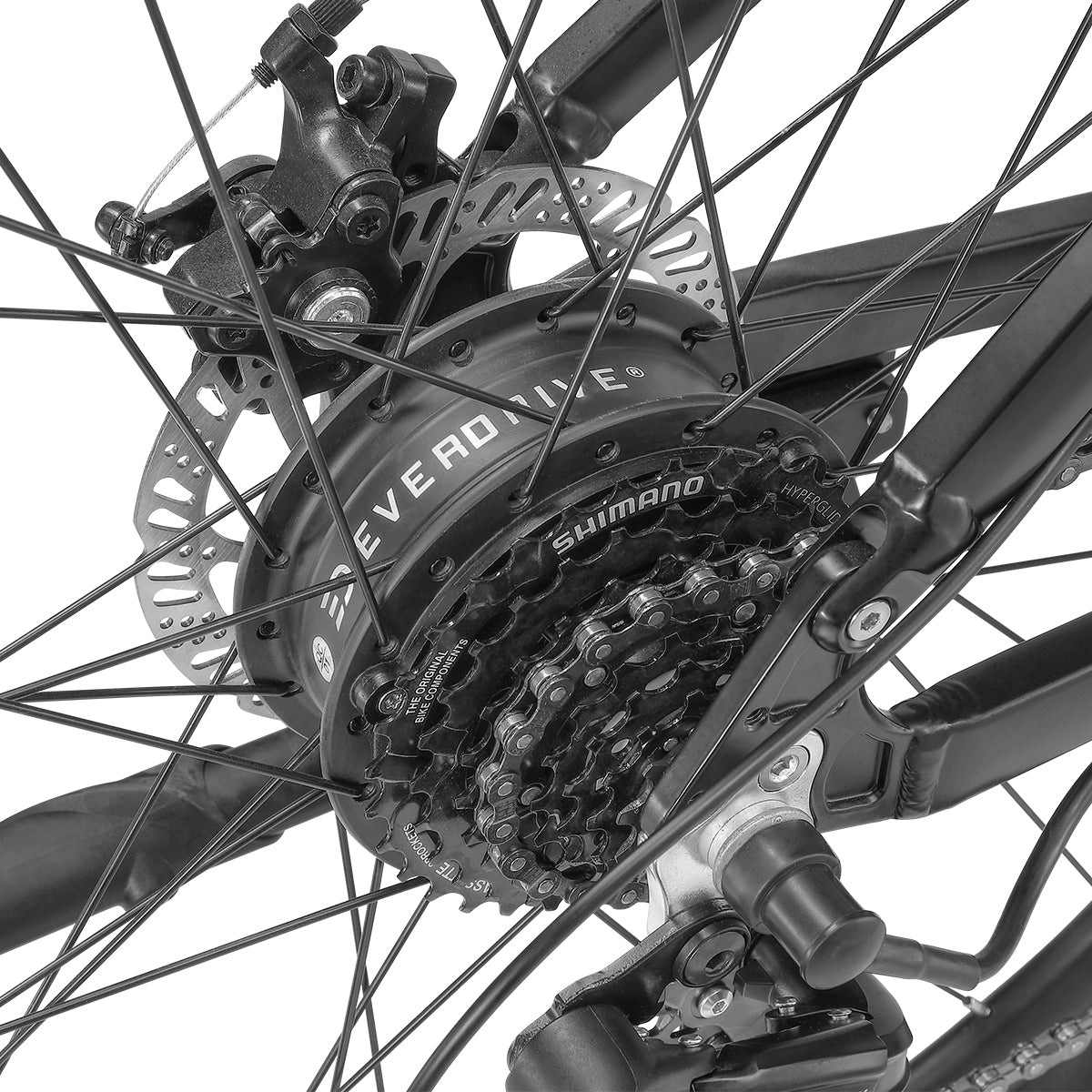

Go further than you ever have with an added 250w EverDrive® Electric Motor. Amplify your pedalling power to pick up speed or power through the most challenging inclines and terrain with ease.

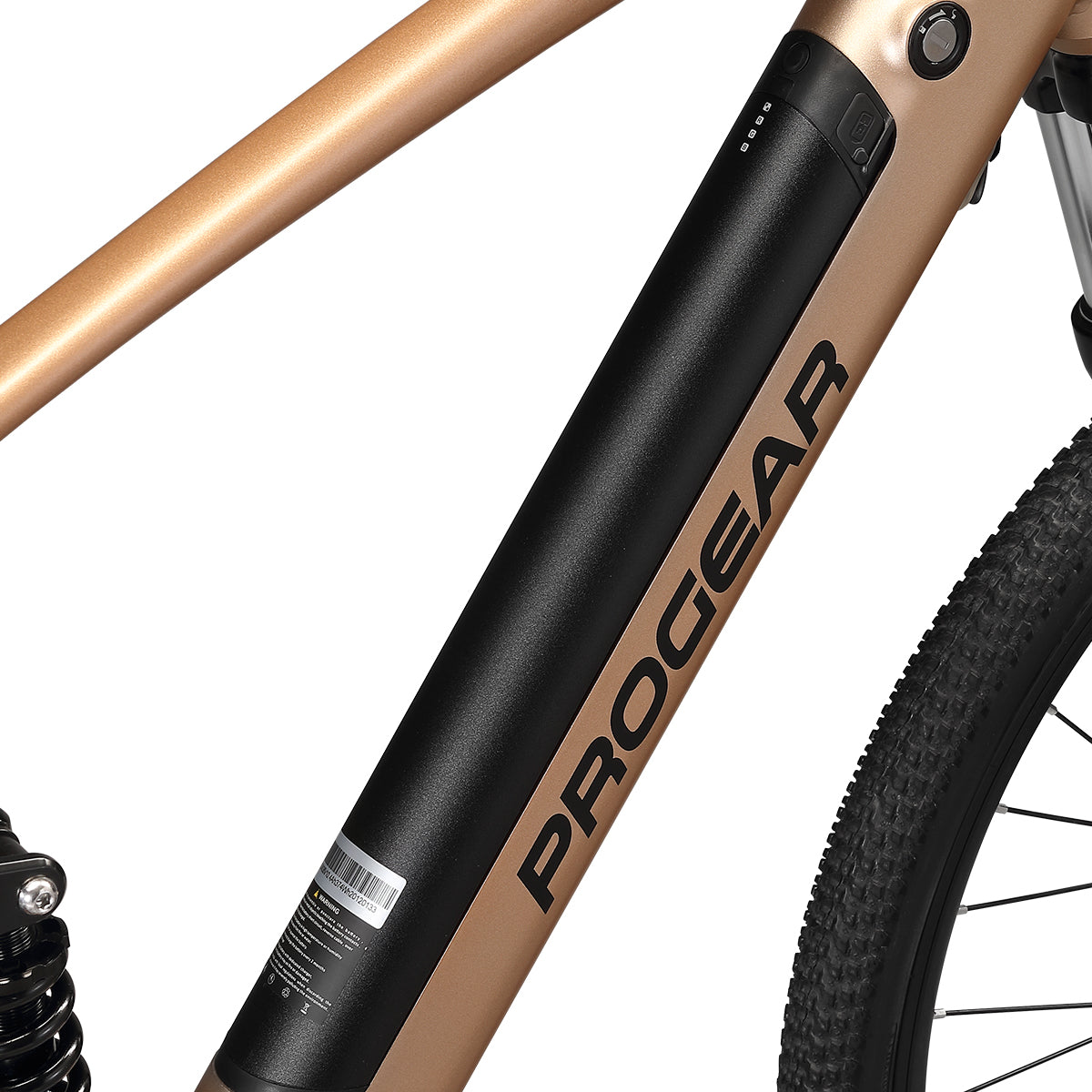

A great electric bike needs a great battery to work. The E-Trail comes with a EverDrive® 36v Integrated Battery Cells to keep you moving through the harshest of trails.
Safety tested to strict international standards and comes with an intelligent protection board for longevity and durability.

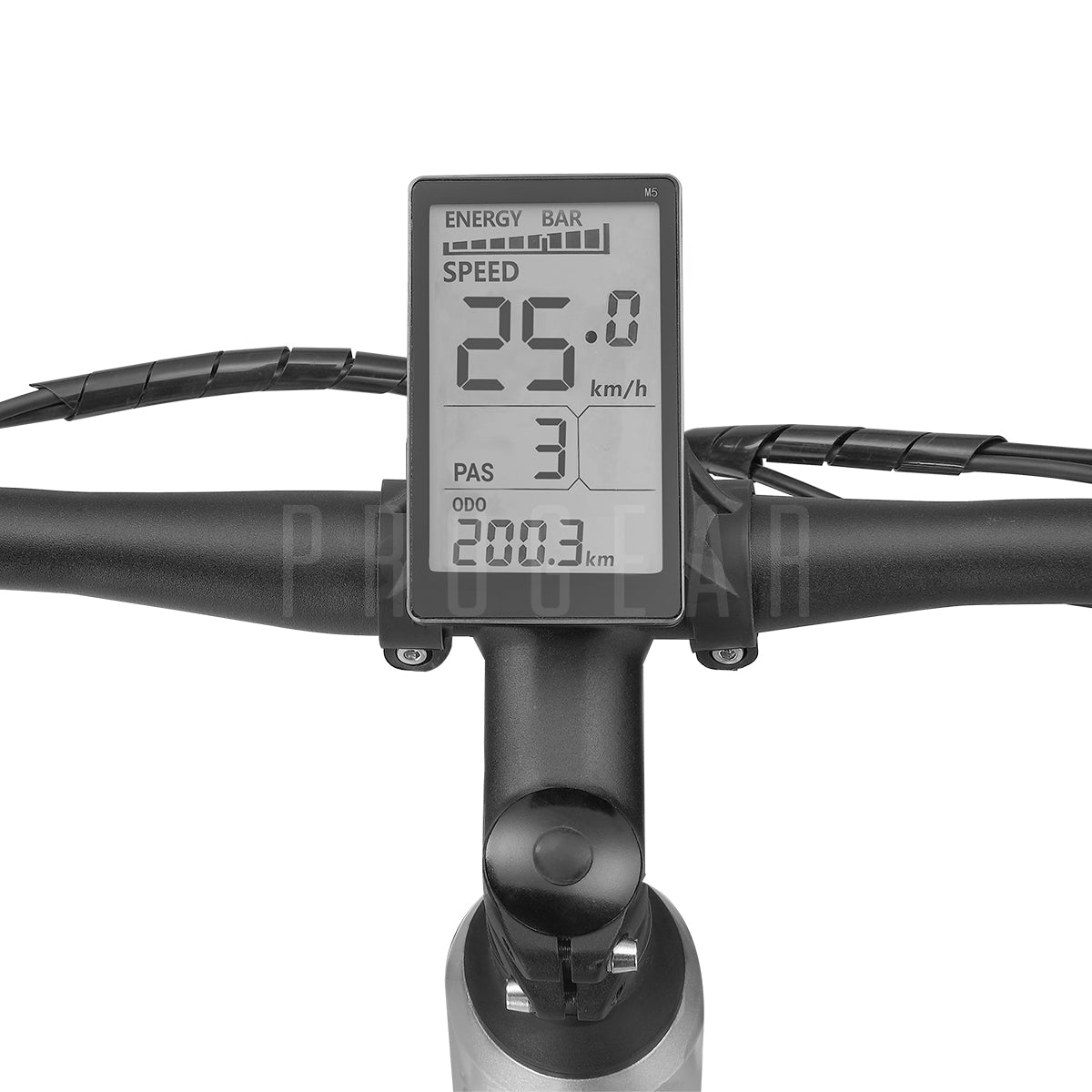

With a large backlit EverDrive® (M5) LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals.
You no longer need to choose between having the speed and handling of a 26" tyre and the traction and evenness of a 29" tyre. Now you can get the best of both worlds. With a 27.5" tyre, you can power through corners as you would with a 26" tyre without sacrificing the traction and smooth ride a 29" tyre would offer.
An awesome package with the following components:
| Frame | Alloy 27.5×18" |
|---|---|
| Suspension component | 1000Lb×24×24×170mm |
| Suspension Fork | 27.5", 100mm Travel, Hydraulic Lockout |
| Handlebar | Alloy Width:680MM, 15MM Rise |
| Stem | Alloy 90mm, +-7°. |
| Grip | 130MM Rubber Grip |
| Crank sets | Crank Length 170mm, 36t Chainring |
| BB sets | L:BB73*127.5mm(26+73+28.5) |
| Pedal | Alloy 9/16" |
| Chain | 1/2"*3/32"*116L |
| Freewheel | Shimano CS-HG200-8, 8-SPEED, 12-14-16-18-21-24-28-32(BR), |
|---|---|
| Derailleur R | Shimano Tourney TY300D |
| Shifter Lever | Shimano,SL-M310,RIGHT 8 Speed Rapid Fire |
| Brake | Mechnical disc brake Rotor:160mm |
| Hub Front | 3/8"*13G*36H |
| Tyre | 27.5"*1.95 |
| Seat Post | ?30.4*350mm |
| Seat Clamp | ?34.9 Quick Release |
| Kickstand | Alloy Kickstand |
| Net Weight | 23kg |
| Gross Weight | 28kg |
| Motor | EverDrive® Electric Motor 250W 25KM/H- Complies to EN15194 |
|---|---|
| Torque Sensor | double hall |
| Display | EverDrive® (M5) 36V 0-5 level, Max Speed 25kph |
| Controller | 27.5, 36V*350W |
|---|---|
| Battery | EverDrive® 36v / 10.4AH complies to UN38.3/MSDS |
| Charger | DC2.1 charge port |
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are
several factors that will affect how long the battery will last after a full charge.
| Frame Size Number | 18" |
| Wheel Size | 27.5" |
| Suggested Height | 175-195cm |
| Minimum Suggested Inseam | 86cm |
| A - Seat Tube | 45.7cm |
| B - Seat Tube Angle | 73deg |
| C - Head Tube Length | 18cm |
| D - Effective Top Tube | 65.6cm |
| E - Chainstay length | 47cm |
| F - Wheelbase | 116cm |
| G - Standover | 81cm |
