Home › Adventurer Dual Sport A3 Hybrid Bike - Blue (X Large, 21")
1 3

In stock

SKU: PGHY-ADVBL-21

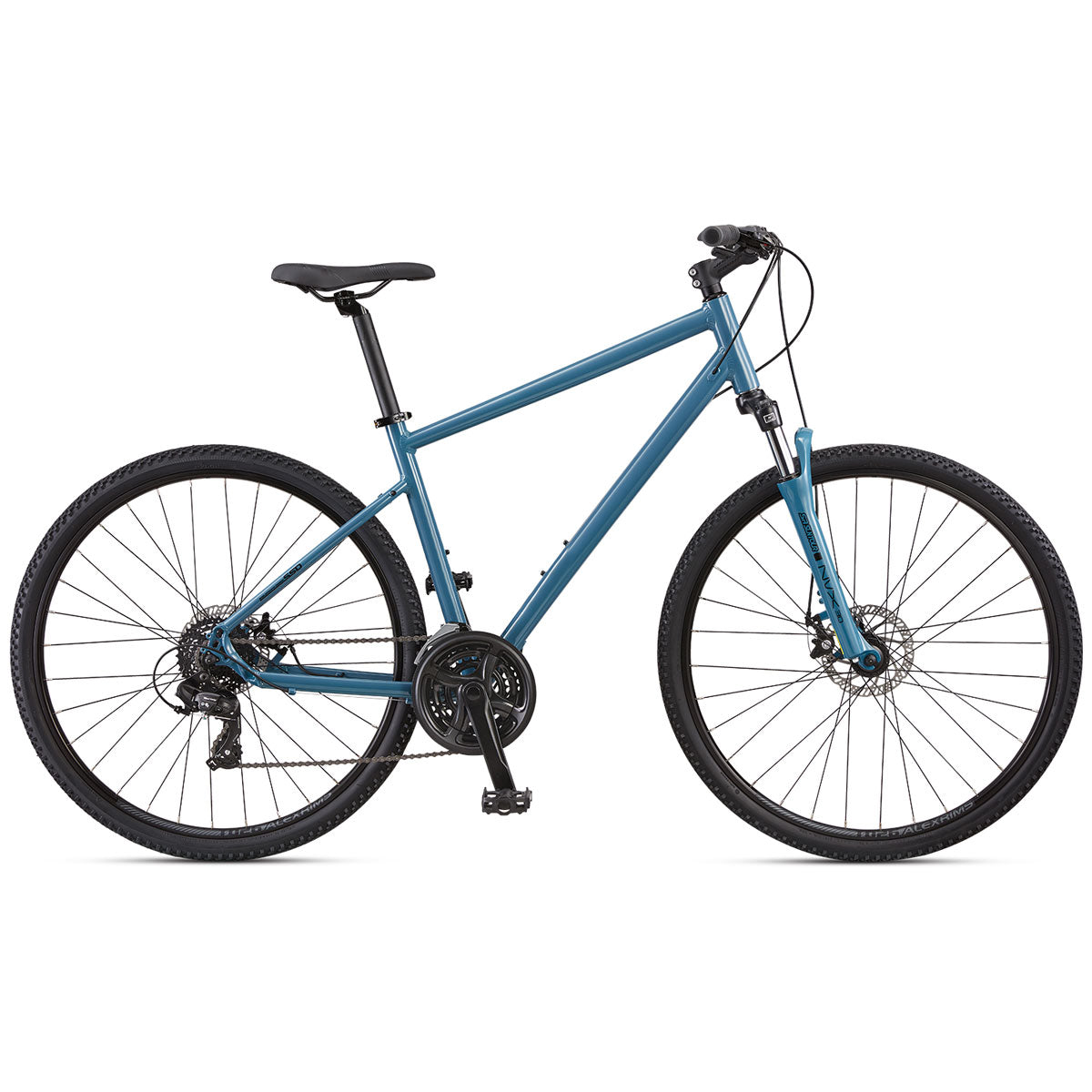

Adventurer Dual Sport A3 Hybrid Bike - Blue (X Large, 21")

Adventurer Dual Sport A3 Hybrid Bike - Blue (X Large, 21")

$559.00
$559.00 $1,599.00
Sale Sold out

REVIEWS

QTY
Size Guide
Still unsure on what bike frame to get? Check out our recommended size guide or contact us via live chat or 1300 310 493 number to talk to our friendly staff for the best option.
CHECK YOUR DELIVERY
GO
    WANT TO PICKUP? Click here to check availability

    *Images provided are for reference only. Actual product may vary.
    Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.

    This product requires assembly

    We provide easy step by step instructions & supporting video tutorials to help you with assembly & adjustments. If you are unfamiliar with assembling or adjusting Bicycles or Tricycles, or find it difficult to assemble or adjust with the instructions supplied, we strongly recommend that this product is built by an experienced bike mechanic. Any damage resulting from improper assembly will not be covered by warranty. See Assembly details

    View full details

    Pick Up Availability

    Click & Collect

    Please see below for all Click & Collect locations. Place an order online, get notified and pick up the order at your convenience.

    Broadmeadows, VIC Parkinson, QLD
    *Pre-Booked Pick Ups Only

    Click here for more details on Click & Collect and Pick Up

    How Progear Works

    Order Online

    Click & Collect

    Easy Assemble

    Video instructions included

    Done!

    Ride your new bike!

    Overview_01

    Lightweight 6061
    Alloy Frame

    Overview_02

    Shimano 7-Speed
    Drivetrain

    Overview_03

    Cable-Actuated
    Disc Brakes

    Overview_04

    SR Suntour
    NVX Fork

    Frame

    Lightweight 6061 Alloy Frame

    Go faster for less effort with a stiff, lightweight alloy frame.

    Suspension

    Smooth Suspension

    Experience a smoother ride no matter the terrain with the SR Suntour NVX fork. This suspension fork will help absorb bumps and keep you in control.

    Drivetrain

    Shimano 7-Speed Drivetrain

    The 7-Speed Shimano drivetrain provides smooth and reliable gear shifting that will allow you to adapt to any incline.

    Braking

    Reliable Braking System

    Experience smooth and consistent braking with the Tektro cable- actuated disc brakes. Riding in wet and muddy conditions, disc brakes offer far superior stopping power to rim wall brakes making them the best option for all season riding.

    Blueprints

    The Blueprints

    An awesome package with the following components:

    • A. Lightweight 6061 Alloy Frame
    • B. Shimano FD-TY710-2 Front
    • C. Cable-Actuated Disc Brakes
    • D. Shimano 7-Speed Drivetrain
    • E. Double Wall Alloy Rims
    • F. Suntour NVX HLO Suspension Fork
    WhereToRide

    Where to ride?

    Specification

    Technical Specifications

    Frame Size Specific Design 6061 alloy with fast back rear triangle, 1 1/8” head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets.
    Fork SR/Suntour NVX-DS, alloy lowers, coil spring, 28mm stanchions, 1-1/8” steerer, 75mm travel
    Headset Internal Cup, threadless, 1 1/8”
    Wheels Alex TD26 disc specific double wall alloy rims, 32H, alloy disc hubs with QR and 14g black electroplated spokes
    Tires CST Dual Sport Tire, 700 x 42c
    Derailleurs Shimano TY300 rear and TY510 top swing front
    Shift levers Shimano Rapid Fire SL-EF500, 2-speed
    Chain KMC Z7
    Cassette Shimano CS-HG200, 7-speed, 12-32T
    Crankset Forged alloy crank with chain guard, 48/38/28T, 170mm
    BB Set VP sealed cartridge, 68 x 122.5mm
    Pedals Platform style
    Brakeset Tektro MD-280 cable-actuated disc brakes with 160mm stainless 6-bolt rotors and Shimano EF41 levers
    Handlebar Riser bar, double-butted alloy, 25.4 x 10 ̊ sweep x 20mm rise x 640mm (15”), 660mm (17-23”)
    Stem Trekking, 3D forged alloy, 15 ̊ rise, Length-60mm (15- 17”), 90mm (19-23”)
    Grips ERGO Type Grip
    Seat Post Alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin
    Saddle Touring with SL cover
    Sizes 15”, 17”, 19”, 21”
    Color Blue
    Weight Approx. 14.5kg

    Bike Size Guide

    BikeSize
    Frame Size Number 15" 17" 19" 21"
    A - Seat Tube 38.1cm 43.18cm 48.26cm 53.34cm
    B - Seat Tube Angle 73° 73° 73° 73°
    C - Head Tube Length 12.7cm 14cm 15.5cm 16.7cm
    D - Effective Top Tube 58.3cm 59.3cm 60.3cm 61.2cm
    E - Chainstay Length 44cm 44cm 44.5cm 44.5cm
    F - Wheelbase 107.1cm 108.2cm 109.9cm 110.8cm
    Measure Bike Inseam

    • HOW TO MEASURE YOUR INSEAM FOR BIKE

    • 1 Stand straight with your back against the wall and feet shoulder-width apart.
    • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
    • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.

    *Images provided are for reference only. Actual product may vary.
    Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.

    Warranty

    • Lifetime warranty on Frame and Fork
    • 12 Months Manufacturer's Warranty on all non-consumable components
    • 12 Months Manufacturer's Warranty on all electrical components, such as motors, display or batteries.
    • Consumable parts (including grips, tubes, tyres, cables, brake pads, saddle coverings, chain, spokes, cassettes and chain rings) are not covered by the warranty.
