Home › PRO Freestyle BMX Bike Chromoly Orange/White
1 3

In stock

SKU: PGBM-JAVOR-20

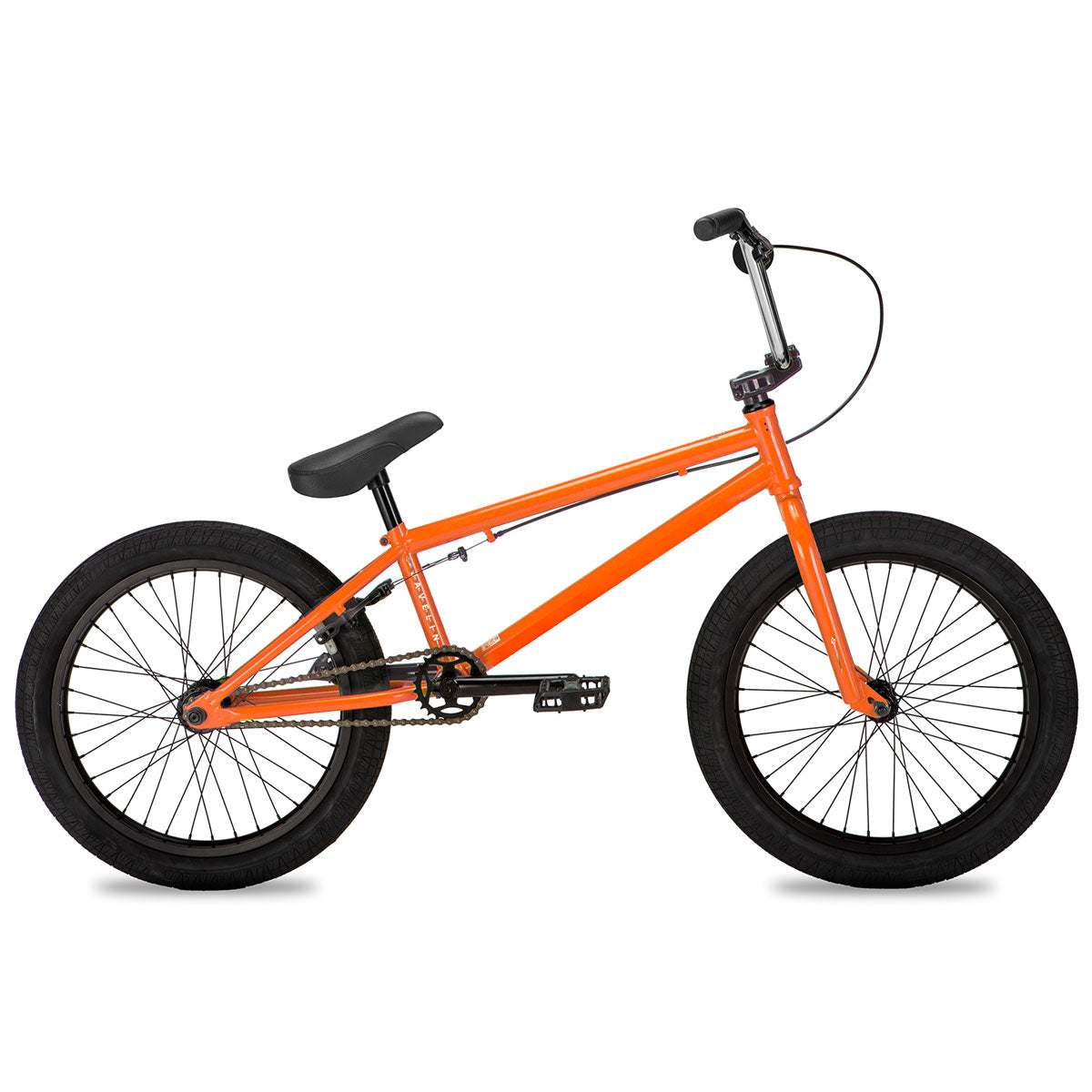

PRO Freestyle BMX Bike Chromoly Orange/White

PRO Freestyle BMX Bike Chromoly Orange/White

$329.00
$329.00 $719.00
Sale Sold out

REVIEWS

QTY
Size Guide
Still unsure on what bike frame to get? Check out our recommended size guide or contact us via live chat or 1300 310 493 number to talk to our friendly staff for the best option.
CHECK YOUR DELIVERY
GO
    WANT TO PICKUP? Click here to check availability

    *Images provided are for reference only. Actual product may vary.
    Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.

    This product requires assembly

    We provide easy step by step instructions & supporting video tutorials to help you with assembly & adjustments. If you are unfamiliar with assembling or adjusting Bicycles or Tricycles, or find it difficult to assemble or adjust with the instructions supplied, we strongly recommend that this product is built by an experienced bike mechanic. Any damage resulting from improper assembly will not be covered by warranty. See Assembly details

    View full details

    Pick Up Availability

    Click & Collect

    Please see below for all Click & Collect locations. Place an order online, get notified and pick up the order at your convenience.

    Broadmeadows, VIC Parkinson, QLD
    *Pre-Booked Pick Ups Only

    Click here for more details on Click & Collect and Pick Up

    How Progear Works

    Order Online

    Click & Collect

    Easy Assemble

    Video instructions included

    Done!

    Ride your new bike!

    Hi-Tensile
    Steel Frame

    2.4"
    EM Tires

    Padded Seat with
    Railed Supports

    3pc Tubular
    Chromoly Cranks

    Paydirt

    PRO BMX

    The PRO BMX is a beginners bike with a little extra. The PRO BMX features a rugged steel frame w/ chromo down tube, sealed rear hub for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, grips, pedals, and sprocket.

    Paydirt

    E3 Welding Process

    Welding Process
    Welding Process

    We've borrowed this superior method of welding from race car and motorcycle frame manufacturing where a secure weld is extremely crucial. You can see that the E3 welding process allows the weld to penetrate the full thickness of the tube.

    Adventure On

    The industry standard tube finishing only allows for the weld to penetrate the thin edge, not penetrated to the end of the tube. The tube isn't bonded together so much as stuck together, making a weak weld. This is one of the main problems plaguing the industry and a major reason for frame breakage.

    Adventure On

    We're constantly experimenting and exploring better manufacturing methods. This has led us tocompletely revamp our manufacturing, to stress quality and performance. E3 is the next wave of BMX.

    Box Sizing Guide

    Box Sizing
    Frame Size Number 20.5"
    Wheel Size 20"
    Minimum Height 140cm
    Minimum Suggested Inseam 61cm
    A - Seat Tube Angle 71°
    B - Top Tube 20"
    C - Chainstay length 13.38"
    D - Standover 56cm

    Specification

    Technical Specifications

    Frame Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
    Top Tube Size: 20.5?
    Fork Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
    Fork Rake: 28mm
    Handlebars Hi-Ten 8.5"
    Upsweep/Backsweep 12?/1?
    Grips Riblet Grips
    Seatpost Steel
    Saddle Medium Width Seat/ Post Combo
    Pedals Atom Plastic Pedal with 9/16" Axle
    Brakes Rear u-Brake, Forged Alloy, Wide Body, Clear Brake Pads
    Brake Levers Forged Alloy Lever
    Stem Forged Alloy Top Load Stem
    Freewheel 9 Tooth Driver with Hub
    Chainwheel & Cranks Phorcys, Cold Hard Steel, 25T
    3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
    Headset Integrated 45°X45° Sealed Cartridge Bearing
    Chain KMC Z510 1/2 x 1/8
    Bottom Bracket American Ball Bearing
    Front Hub Loose Ball, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
    Rear Hub Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
    Spokes 14 Gauge with Brass Nipples
    Tyres 20 x 2.4
    Rims Alloy, Single Wall, Drilled for 36 Spokes (20")
    Bell N/A
    Measure Bike Inseam

    • HOW TO MEASURE YOUR INSEAM FOR BIKE

    • 1 Stand straight with your back against the wall and feet shoulder-width apart.
    • 2 Place a book between your legs and raise as far as possible, this imitates a seated bike position.
    • 3 Use a measuring device to measure from the top of the book to the floor (in cm). This measurement is your inseam length.

    *Images provided are for reference only. Actual product may vary.
    Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.

    Warranty

    • Lifetime warranty on Frame and Fork
    • 12 Months Manufacturer's Warranty on all non-consumable components
    • 12 Months Manufacturer's Warranty on all electrical components, such as motors, display or batteries.
    • Consumable parts (including grips, tubes, tyres, cables, brake pads, saddle coverings, chain, spokes, cassettes and chain rings) are not covered by the warranty.

    For more information on our Warranty policy, click here

    More Information

    Delivery Assembly Product Manuals
